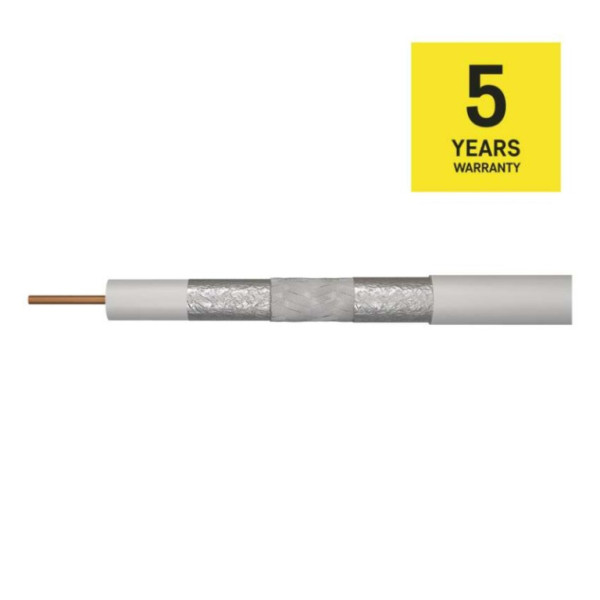

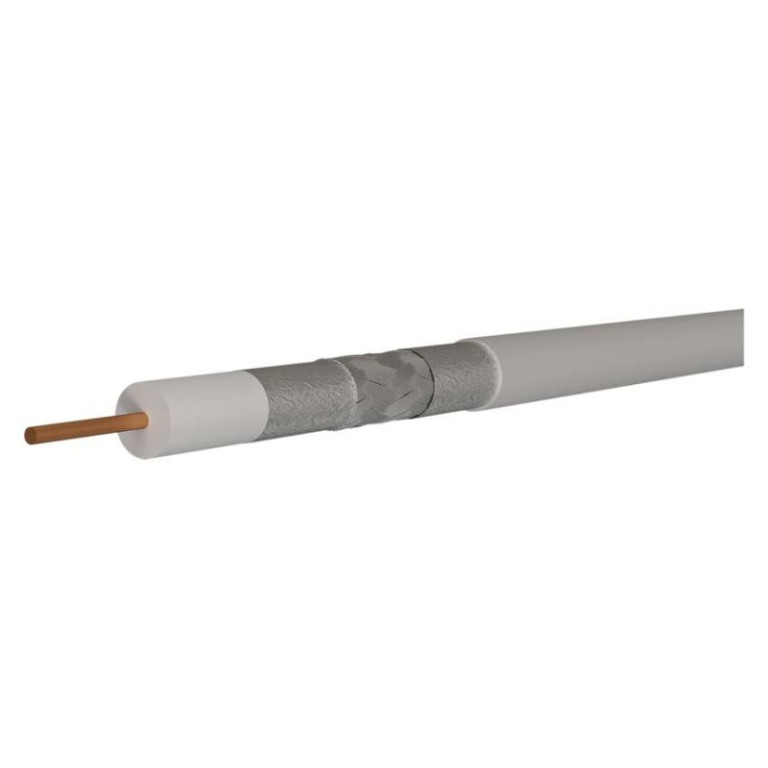

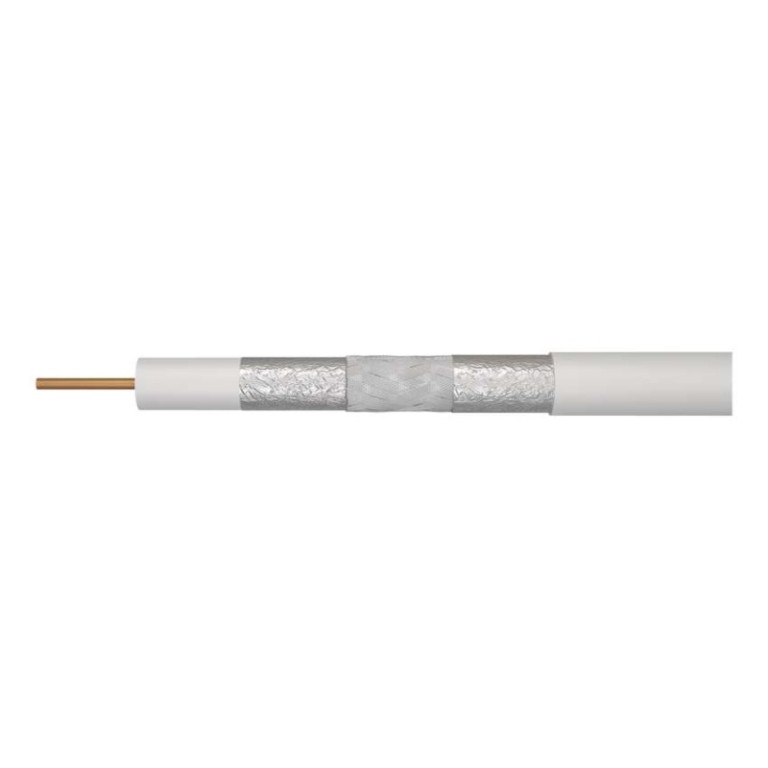

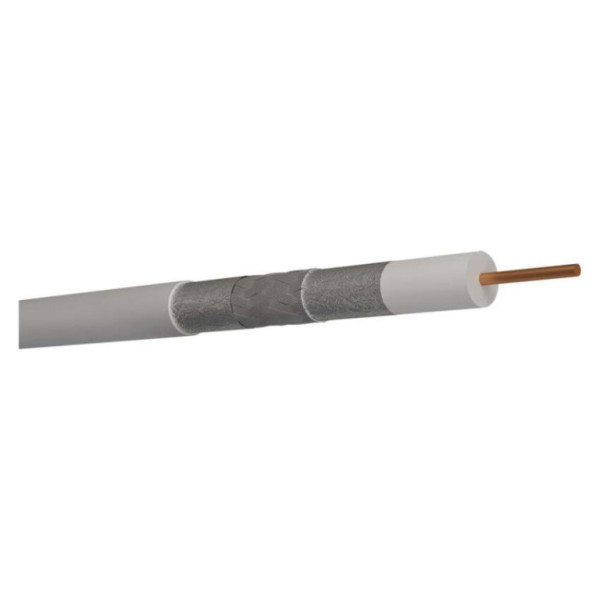

Coaxial cable CB113, 100m

Product descriptionHighest quality coaxial cable with pure BC copper center conductor and triple shielding TRISHIELD made of tinned CuSn copper, white color. The cable is designed for all demanding CCTV, TV and SAT signal transmission applications. Because the cable has a very high attenuation of the shielding (= very low radiation), the cable can carry signals at a very high level, for this reason signals can be transmitted over long distances with this cable. Due to the high quality shielding, there is no problem with multiple cables running together over long distances. Due to the material used for the central conductor and braid, the cable is extremely resistant to weather conditions, moisture and corrosion. Ideal cable for demanding house and apartment wiring. More information

Availability:

In stock at manufacturer

Doručení do Vánoc již není možné.

Order. number:

18EMO01685

Code:

S5261

~~86,24 € excl. VAT~~

77,61 €

93,91 € incl. VAT

Další varianty (2) produktu

Product description

Coaxial cable of the highest quality with pure BC copper centre conductor and triple shielding TRISHIELD made of tinned CuSn copper, white colour. The cable is designed for all demanding CCTV, TV and SAT signal transmission applications. Because the cable has a very high attenuation of the shielding (= very low radiation), the cable can carry signals at a very high level, for this reason signals can be transmitted over long distances with this cable. Due to the high quality shielding, there is no problem with multiple cables running together over long distances. The material used for the central conductor and braid makes the cable extremely resistant to weather conditions, moisture and corrosion. Ideal cable for demanding house and apartment wiring.

APE = air dielectric: no
insulation colour of power supply conductors: not applicable
cable sheath colour: white
Shortening factor: 0.85
dielectric type, diameter: FPE 4,8 mm
recommended connector types - F crimp: not applicable
recommended connector types - F screw connector: *K7351
FPE = foam dielectric: yes
weight (kg/km): 41.5
impedance: 75 Ohm
insulation of power supply conductors: not applicable
insulation resistance between cores at 20 °C (MOhm/km): 1 000
capacitance (pF/m): 52
design of power supply wires: not applicable
cable sheath material: PVC
shielding material: tinned copper (CuSn)
inner conductor material: copper (Cu)
max. equal resistance at 20 °C, (Ohm/km) - outer core: 38,5
max. equal resistance at 20 °C (Ohm/km) - inner core: 18,5
max. attenuation at 20 °C (dB/100m) 1000 MHz: 19.3
max. attenuation at 20 °C (dB/100m) 100 MHz: 5.8
max. attenuation at 20 °C (dB/100m) 10 MHz: 2.2
max. attenuation at 20 °C (dB/100m) 2 000 MHz: 29.5
max. attenuation at 20 °C (dB/100m) 450 MHz: 12.5
max. attenuation at 20 °C (dB/100m) 650 MHz: 15.3
max. attenuation at 20 °C (dB/100m) 860 MHz: 18.5
min. bending radius single/multiple: 35/70 mm
min. reflection attenuation at 20 °C (dB) 10-300 MHz: 30
min. reflection attenuation at 20 °C (dB) 300-600 MHz: 25
min. reflection attenuation at 20 °C (dB) 600-900 MHz: 23
min. shielding attenuation (dB) 10 ~ 800 MHz: >97
Installation temperature: 5 °C to 60 °C
hazardous substances: none
UV resistant: no
PE = polyethylene dielectric: not applicable
PES = film layer: no
number of shield wires: 144× 0.12 mm
number of shields: 3
Shielding coverage: >84%

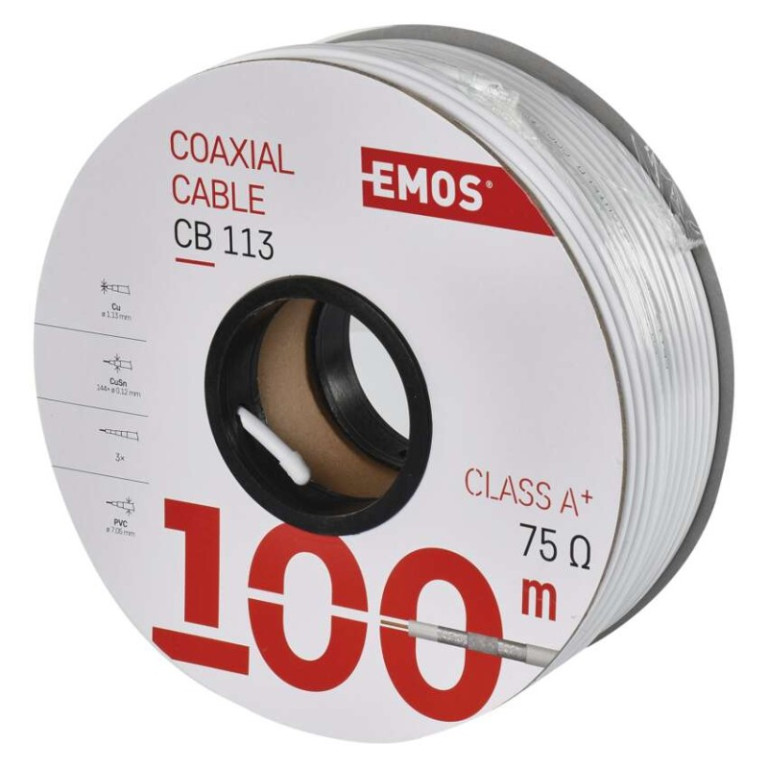

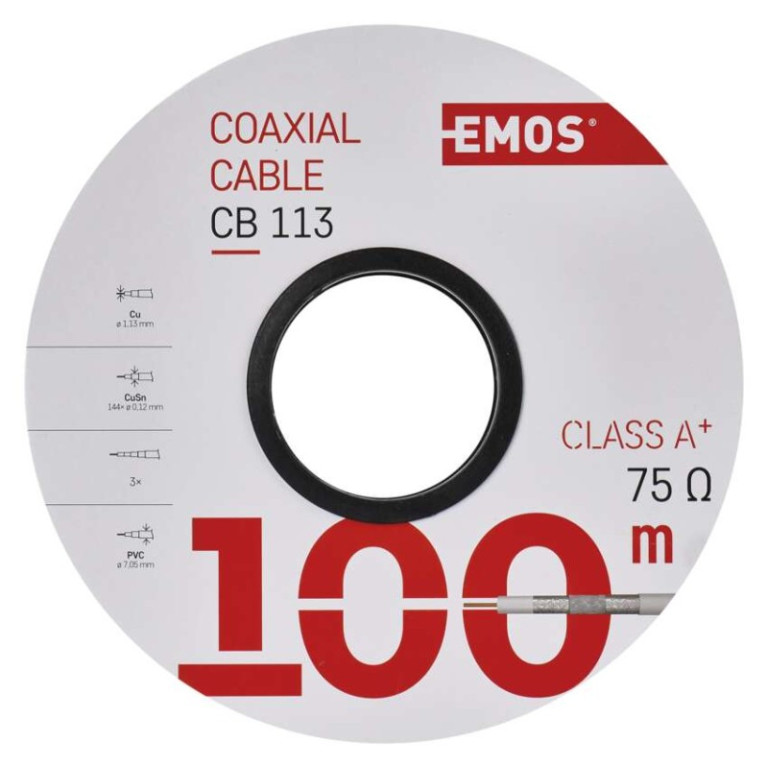

sales package: 100 m, spool
cable sheath diameter: 7.05 mm
shielding diameter: 144× 0.12 mm2
Inner wire diameter: 1.13 mm
cross-section of power supply wires: not applicable
Storage temperature: -20 °C to 75 °C
I.foil shielding: 1× Al/PES
Shielding II. foil: Al/PES spiral
reaction to fire class: eca
type of coaxial cable: CB113
suitable for outdoor use: no
intended use: tertiary CATV, SAT
Warranty period: 5 years
packing method - length: 100 m
packing method - metre marking: 1-100 m
packing method - coil type: paper coil
