Coaxial cable CB113, 250m
Product descriptionHighest quality coaxial cable with pure BC copper center conductor and triple shielding TRISHIELD made of tinned CuSn copper, white color. The cable is designed for all demanding CCTV, TV and SAT signal transmission applications. Because the cable has a very high attenuation of the shielding (= very low radiation), the cable can carry signals at a very high level, for this reason signals can be transmitted over long distances with this cable. Due to the high quality shielding, there is no problem with multiple cables running together over long distances. Due to the material used for the central conductor and braid, the cable is extremely resistant to weather conditions, moisture and corrosion. Ideal cable for demanding house and apartment wiring. More information
Availability:
In stock at manufacturer
Order. number:
18EMO01030
Code:
S5262
203,02 € excl. VAT
182,36 €
220,65 € incl. VAT
Product description

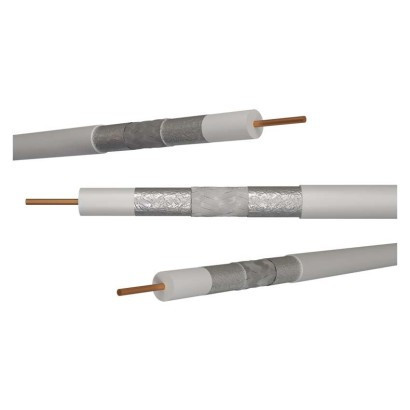

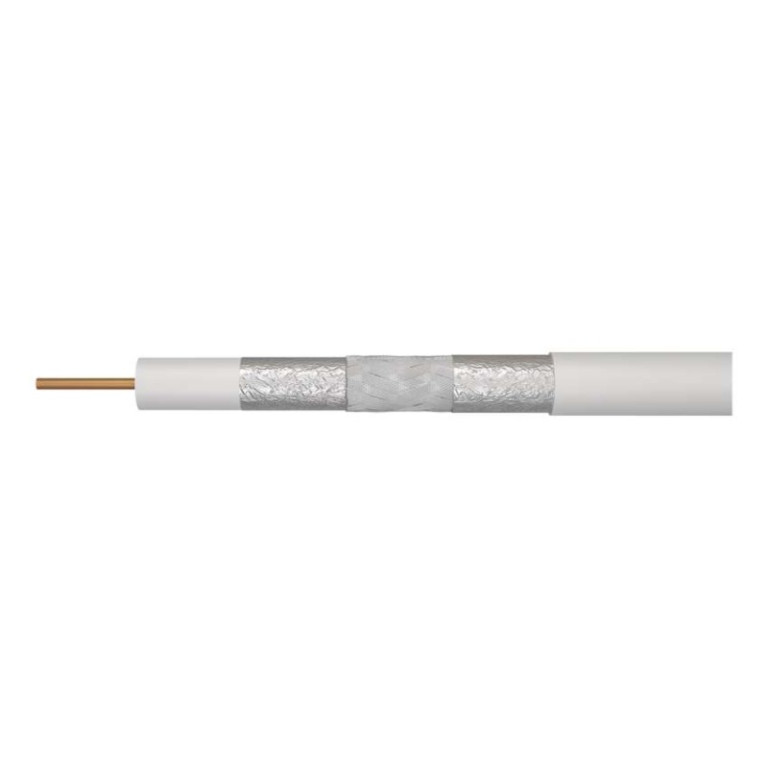

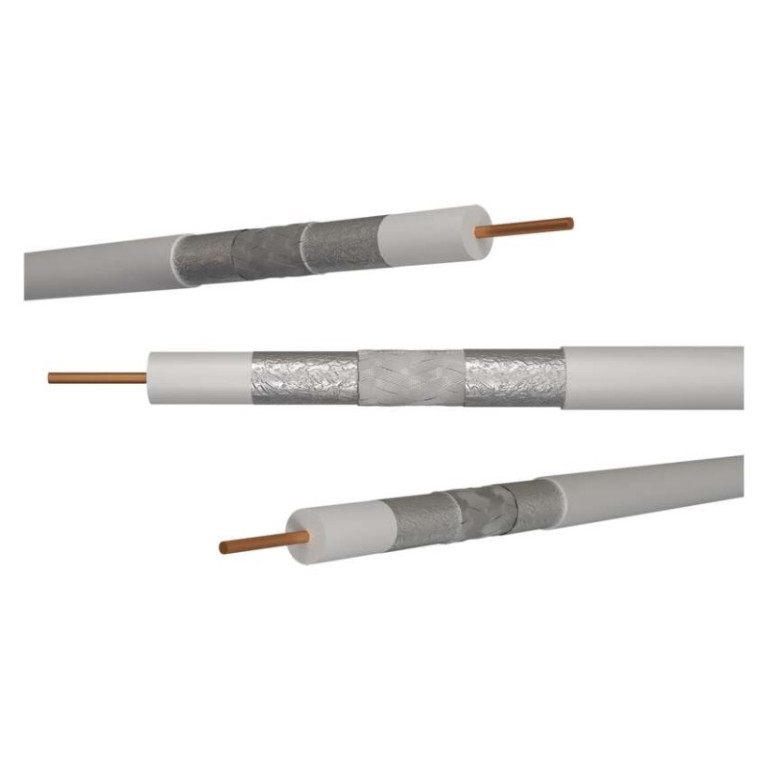

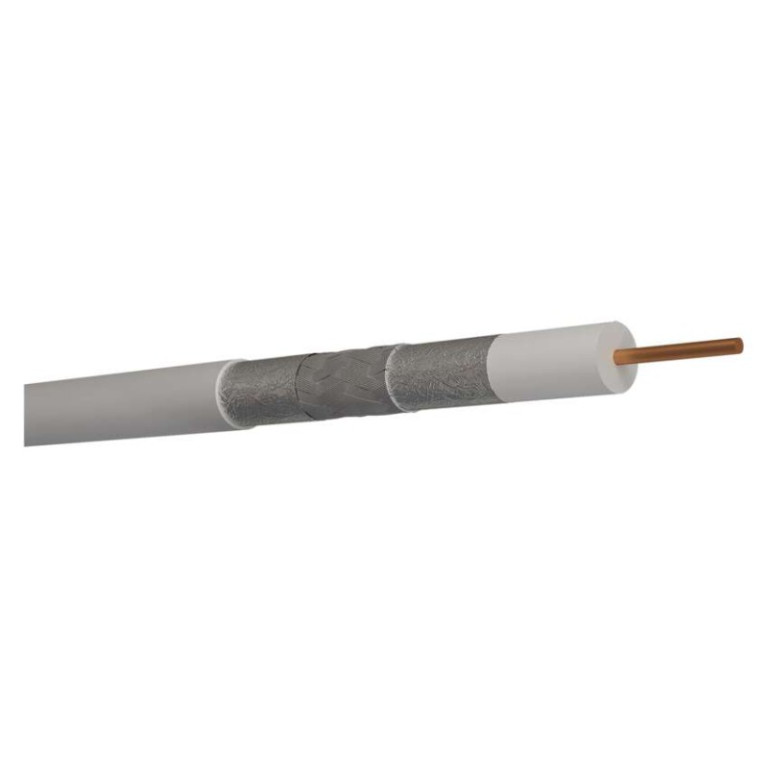

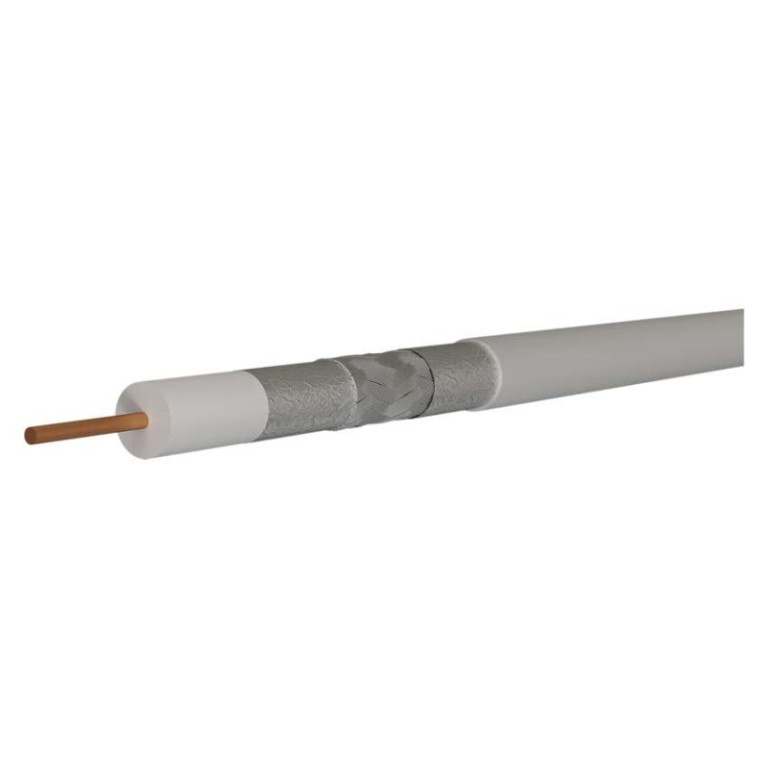

Coaxial cable of the highest quality with pure BC copper centre conductor and triple TRISHIELD shielding made of tinned CuSn copper, white colour. The cable is designed for all demanding CCTV, TV and SAT signal transmission applications. Because the cable has a very high attenuation of the shielding (= very low radiation), the cable can carry signals at a very high level, for this reason signals can be transmitted over long distances with this cable. Due to the high quality shielding, there is no problem with multiple cables running together over long distances. The material used for the central conductor and braid makes the cable extremely resistant to weather conditions, moisture and corrosion. Ideal cable for demanding house and apartment wiring.- APE = air dielectric: no
- insulation colour of power supply conductors: not applicable
- cable sheath colour: white
- Shortening factor: 0.85
- dielectric type, diameter: FPE 4,8 mm
- recommended connector types - F crimp: *K7220
- recommended connector types - F screw connector: *K7351
- FPE = foam dielectric: yes
- weight (kg/km): 41.5
- impedance: 75 Ohm
- insulation of power supply conductors: not applicable
- insulation resistance between cores at 20 °C (MOhm/km): 1 000
- capacitance (pF/m): 52
- design of power supply wires: not applicable
- cable sheath material: PVC
- shielding material: tinned copper (CuSn)
- inner conductor material: copper (Cu)
- max. equal resistance at 20 °C, (Ohm/km) - outer core: 38,5
- max. equal resistance at 20 °C (Ohm/km) - inner core: 18,5
- max. attenuation at 20 °C (dB/100m) 1000 MHz: 19.3
- max. attenuation at 20 °C (dB/100m) 100 MHz: 5.8
- max. attenuation at 20 °C (dB/100m) 10 MHz: 2.2
- max. attenuation at 20 °C (dB/100m) 2 000 MHz: 29.5
- max. attenuation at 20 °C (dB/100m) 450 MHz: 12.5
- max. attenuation at 20 °C (dB/100m) 650 MHz: 15.3
- max. attenuation at 20 °C (dB/100m) 860 MHz: 18.5
- min. bending radius single/multiple: 35/70 mm
- min. reflection attenuation at 20 °C (dB) 10-300 MHz: 30
- min. reflection attenuation at 20 °C (dB) 300-600 MHz: 25
- min. reflection attenuation at 20 °C (dB) 600-900 MHz: 23
- min. shielding attenuation (dB) 10 ~ 800 MHz: >97
- Installation temperature: 5 °C to 60 °C
- hazardous substances: none
- UV resistant: no
- PE = polyethylene dielectric: not applicable
- PES = film layer: no
- number of shield wires: 144× 0.12 mm
- number of shields: 3
- Shielding coverage: >84%

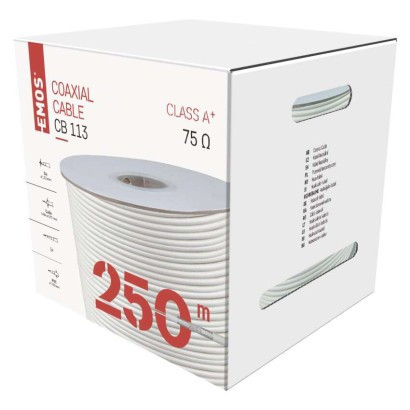

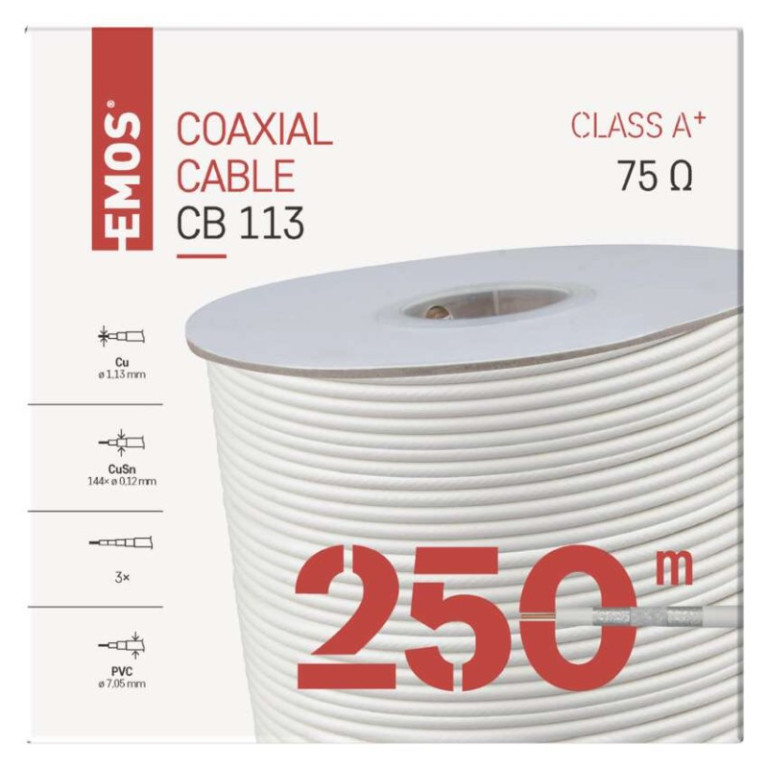

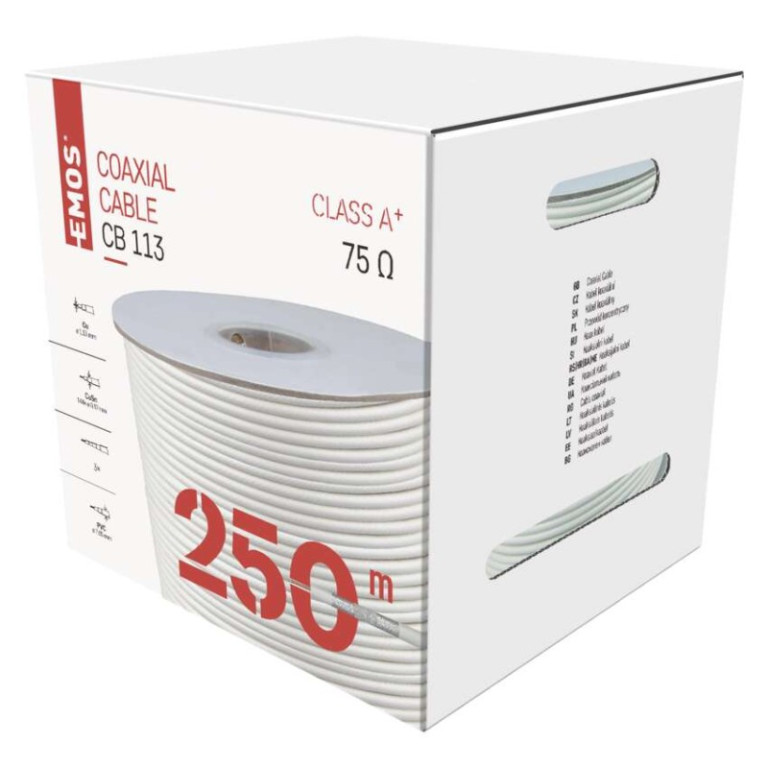

- sales packaging: 250 m, spool in box
- cable sheath diameter: 7.05 mm
- shielding diameter: 144× 0.12 mm2
- Inner wire diameter: 1.13 mm
- cross-section of power supply wires: not applicable
- Storage temperature: -20 °C to 75 °C
- I.foil shielding: 1× Al/PES
- Shielding II. foil: Al/PES spiral
- reaction to fire class: eca
- type of coaxial cable: CB113
- suitable for outdoor use: no
- intended use: tertiary CATV, SAT

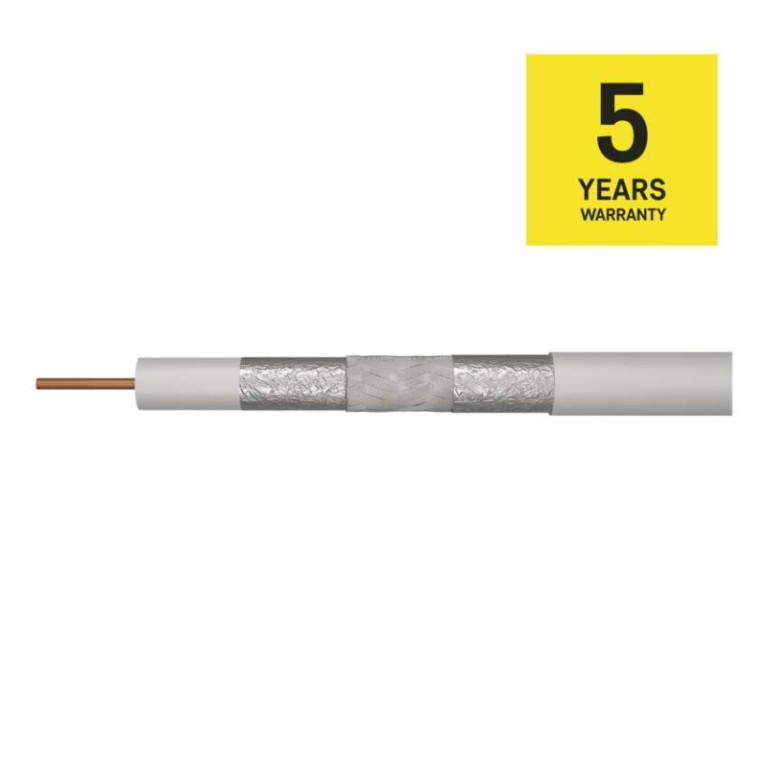

- Warranty period: 5 years
- packing method - length: 250 m
- packing method - metre marking: 1-250 m

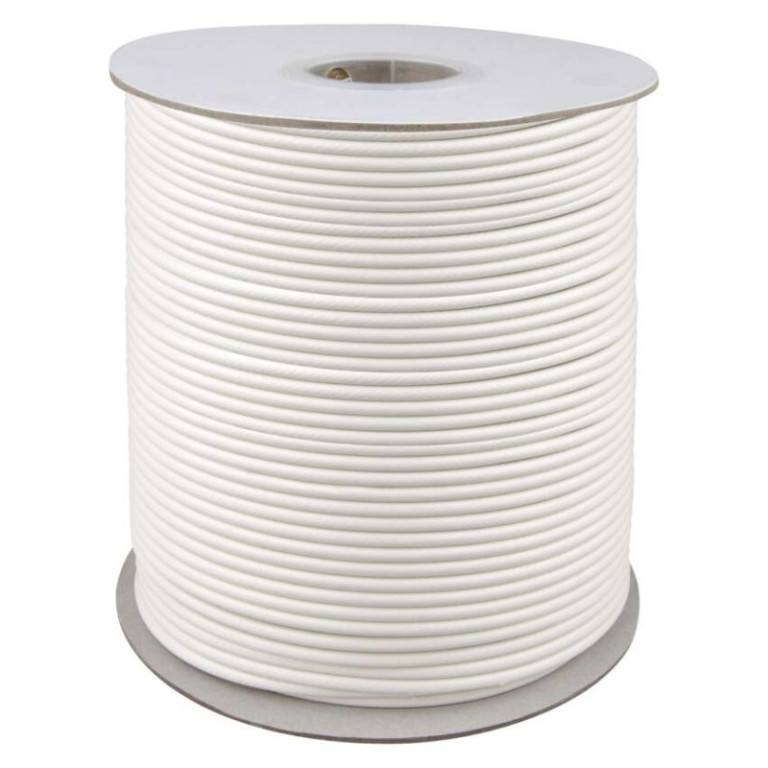

- packaging method - coil type: PVC coil in paper box
