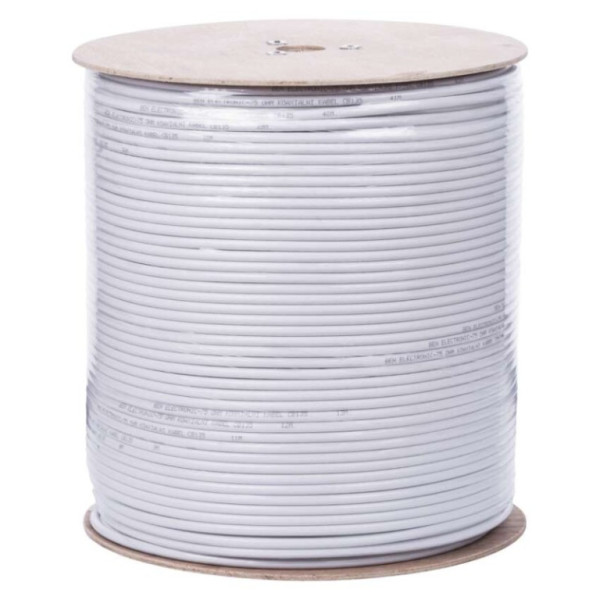

Coaxial cable CB113, 500m

Product description

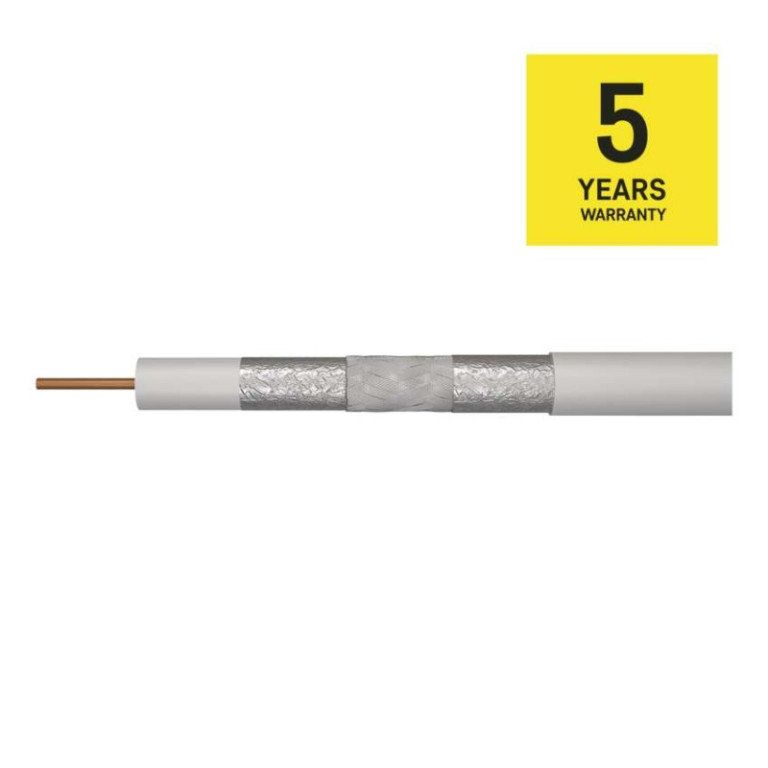

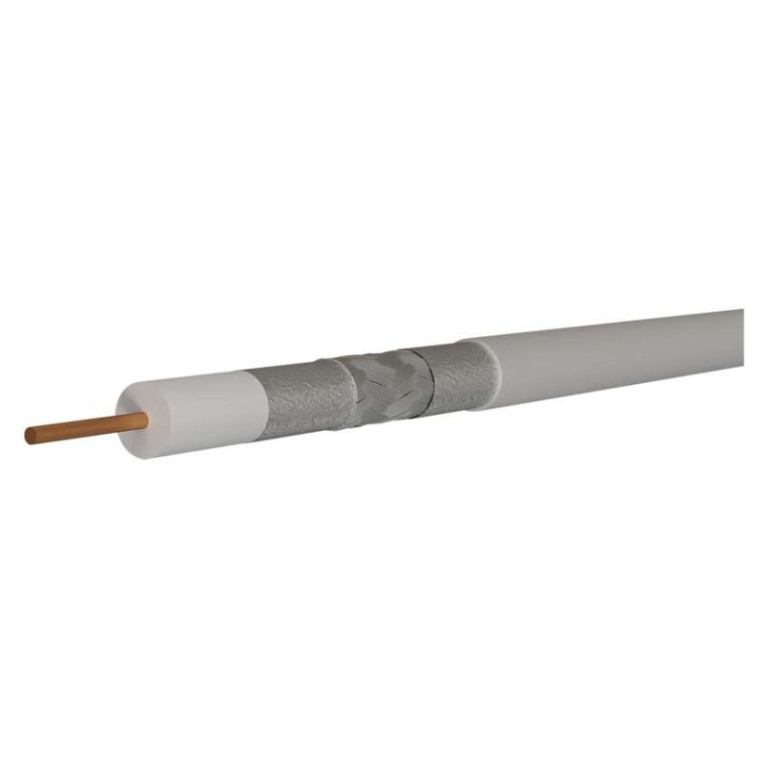

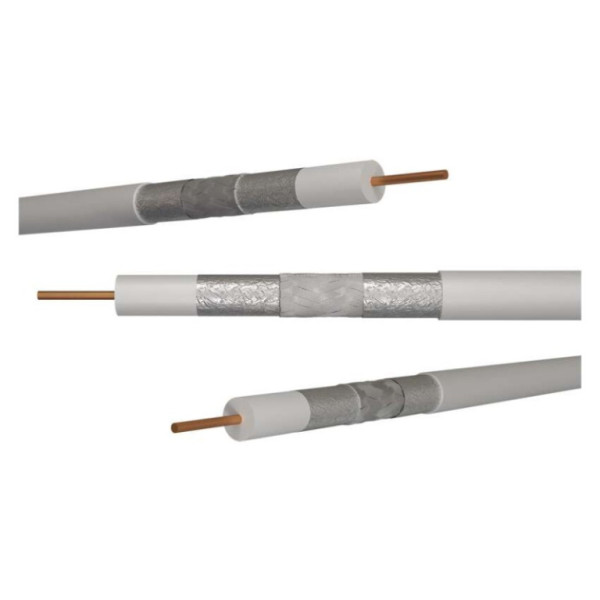

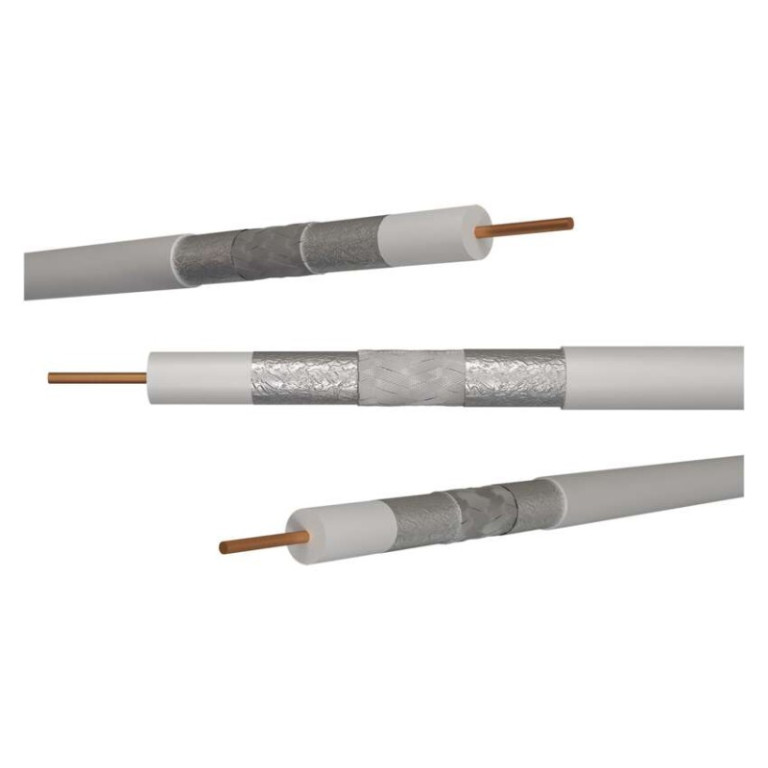

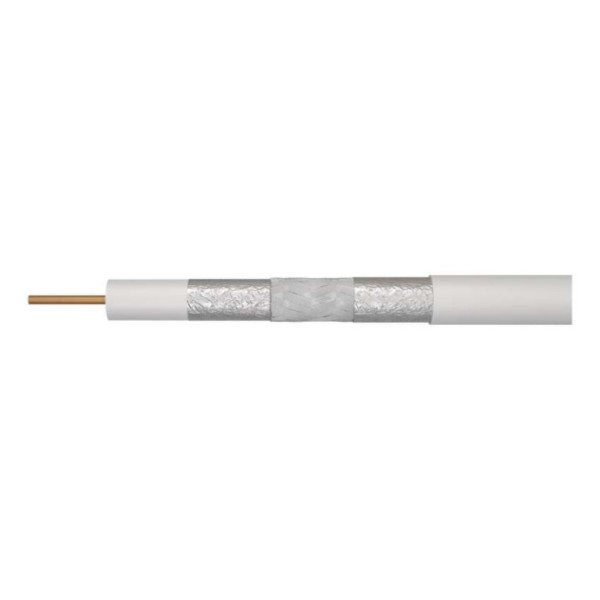

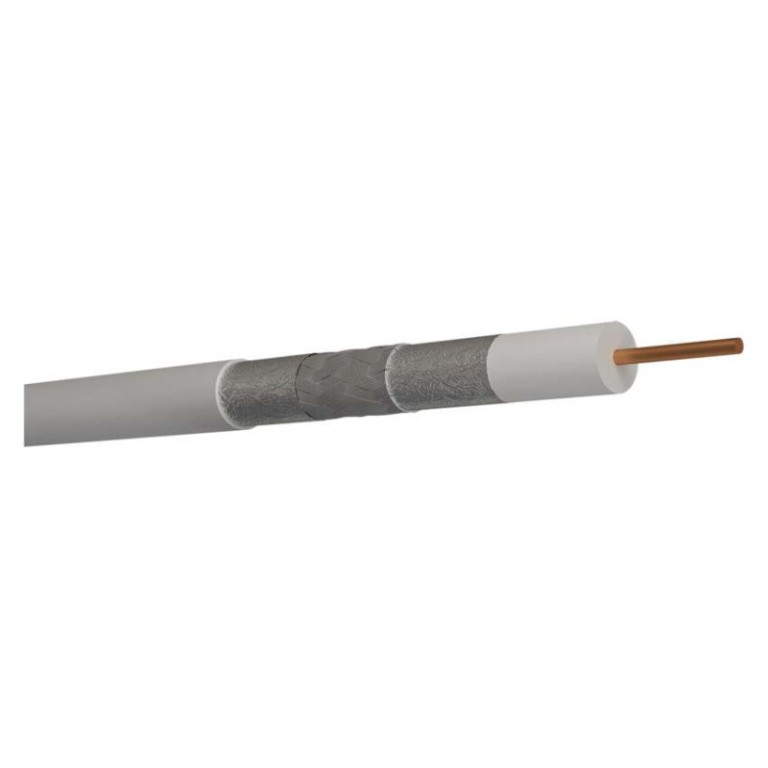

Coaxial cable with foam dielectric and triple shielding. The cable is used for tertiary cable distribution and indoor distribution. The outer diameter of the cable is 6,8 mm.

Product advantages

Coaxial cable of the highest quality with pure BC copper centre conductor and triple TRISHIELD shielding made of tinned CuSn copper, white colour. The cable is designed for all demanding CCTV, TV and SAT signal transmission applications. Because the cable has a very high attenuation of the shielding (= very low radiation), the cable can carry signals at a very high level, for this reason signals can be transmitted over long distances with this cable. Due to the high quality shielding, there is no problem with multiple cables running together over long distances. Due to the material used for the central conductor and braid, the cable is extremely resistant to weather conditions, moisture and corrosion. Ideal cable for demanding house and apartment wiring.

• APE = air dielectric: not applicable
• insulation colour of power supply conductors: not applicable
• cable sheath colour: white
• Shortening factor: 0.85
• dielectric type, diameter: FPE 4,8 mm
• recommended connector types - F crimp: *K7220
• recommended connector types - F screw connector: *K7351
• FPE = foam dielectric: yes
• weight (kg/km): 43.5
• impedance: 75 Ohm
• insulation of power supply conductors: not applicable
• insulation resistance between cores at 20 °C (MOhm/km): 1 000
• capacitance (pF/m): 53
• design of power supply wires: not applicable
• cable sheath material: PVC (HD 624)
• shielding material: tinned copper (CuSn)
• inner conductor material: copper (Cu)
• max. equal resistance at 20 °C, (Ohm/km) - outer core: 38,5
• max. equal resistance at 20 °C (Ohm/km) - inner core: 18,5
• max. attenuation at 20 °C (dB/100m) 1000 MHz: 19.3
• max. attenuation at 20 °C (dB/100m) 100 MHz: 5.8
• max. attenuation at 20 °C (dB/100m) 10 MHz: 2.2
• max. attenuation at 20 °C (dB/100m) 2 000 MHz: 29.5
• max. attenuation at 20 °C (dB/100m) 450 MHz: 12.5
• max. attenuation at 20 °C (dB/100m) 650 MHz: 15.3
• max. attenuation at 20 °C (dB/100m) 860 MHz: 18.5
• min. bending radius single/multiple: 35/70 mm
• min. reflection attenuation at 20 °C (dB) 10-300 MHz: 30
• min. reflection attenuation at 20 °C (dB) 300-600 MHz: 25
• min. reflection attenuation at 20 °C (dB) 600-900 MHz: 23
• min. shielding attenuation (dB) 10 ~ 800 MHz: >97
• Installation temperature: 5 °C to 60 °C
• hazardous substances: none
• UV resistant: no
• PE = polyethylene dielectric: Foamed PE
• PES = film layer: yes
• number of shield wires: 144× 0.12 mm
• number of shields: 3
• Shielding coverage: >84%
• sales package: 500 m, wooden spool
• cable sheath diameter: 7.05 mm
• shielding diameter: 144× 0.12 mm2
• Inner wire diameter: 1.13 mm
• cross-section of power supply wires: not applicable
• Storage temperature: -20 °C to 75 °C
• I.foil shielding: 1× Al/PES
• Shielding II. foil: Al/PES spiral
• reaction to fire class: eca
• type of coaxial cable: CB113
• suitable for outdoor use: no
• intended use: tertiary CATV, SAT
• Warranty period: 5 years
• packing method - length: 500 m
• packing method - metre marking: 1-500 m
• packing method - coil type: wooden coil
