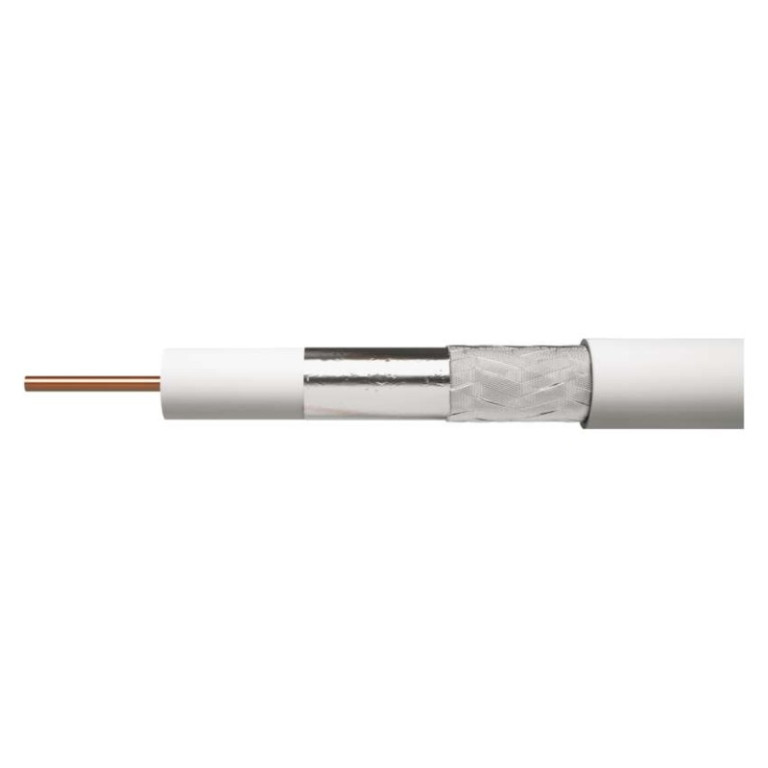

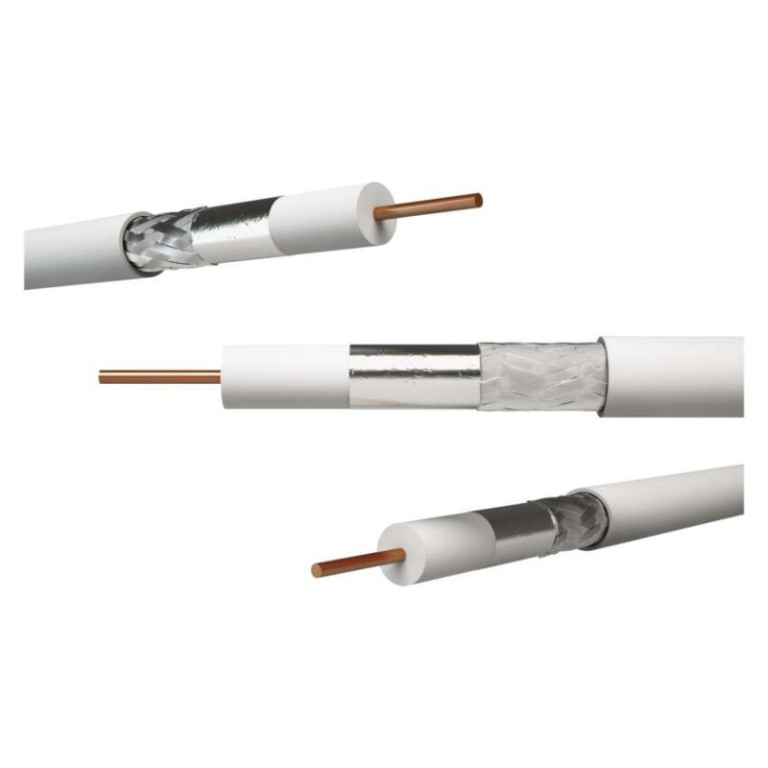

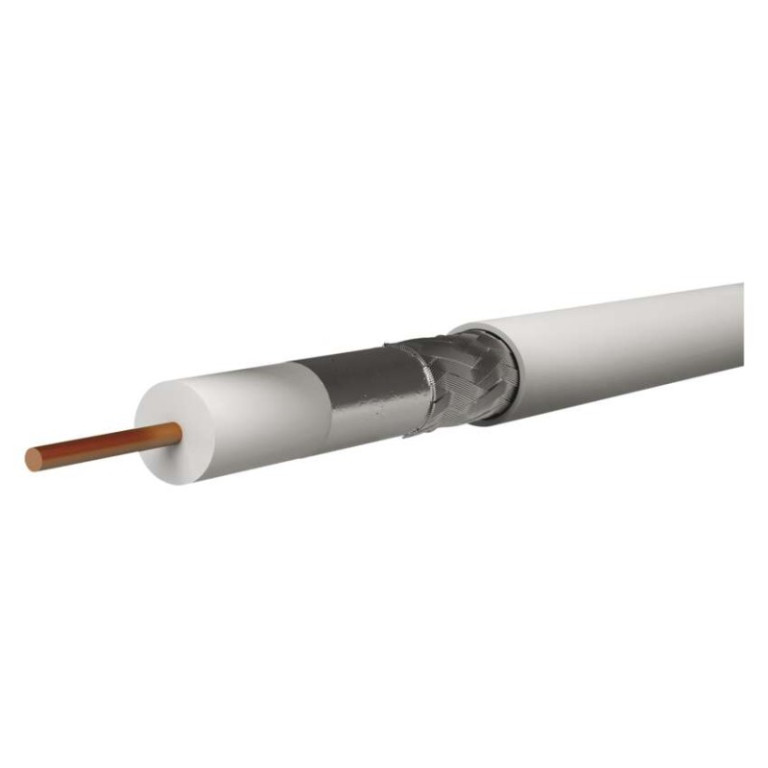

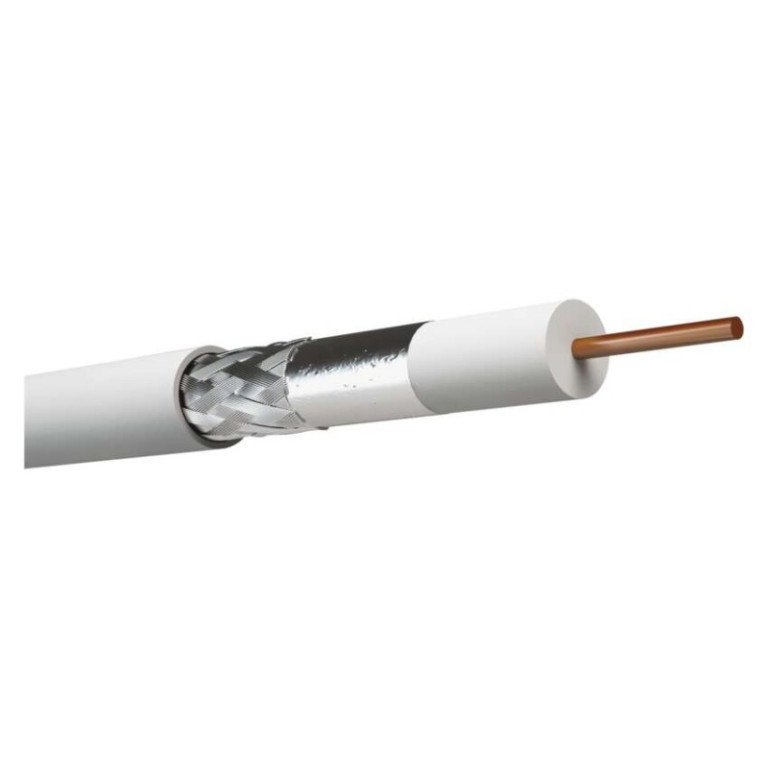

Coaxial cable CB21D, 500m

Product descriptionThe highest quality coaxial cable type KH21D with a center conductor made of pure BC copper, white color, CLASS A. The cable is designed for all demanding applications of CCTV, TV and SAT signal transmissions. Because the cable has a very high attenuation of shielding (= very low radiation), the cable can carry a very high signal level, for this reason signals can be transmitted over long distances with this cable. Due to the high quality shielding, there is no problem with multiple cables running together over long distances. More information

Availability:

In stock at manufacturer

Order. number:

18EMO02128

Code:

S5273

~~292,85 € excl. VAT~~

264,10 €

319,57 € incl. VAT

Další varianty (1) produktu

Product description

Coaxial cable type KH21D of the highest quality with a center conductor made of pure BC copper, white color, CLASS A. The cable is designed for all demanding applications of CCTV, TV and SAT signal transmission. Because the cable has a very high attenuation of shielding (= very low radiation), the cable can carry signals of a very high level, for this reason signals can be transmitted over long distances with this cable. Due to the high quality shielding, there is no problem with multiple cables running together over long distances.

APE = air dielectric: no
insulation colour of power supply conductors: not applicable
cable sheath colour: white
Shortening factor: 0,82
dielectric type, diameter: FPE 4,8 mm
recommended connector types - F crimp: *K7220
recommended connector types - F screw connector: *K7351
FPE = foam dielectric: yes
weight (kg/km): 41.5
impedance: 75 Ohm
insulation of power supply conductors: not applicable
insulation resistance between cores at 20 °C (MOhm/km): 1 000
capacitance (pF/m): 52
design of power supply wires: not applicable
cable sheath material: PVC
shielding material: aluminium (Al)
inner conductor material: copper (Cu)
max. equal resistance at 20 °C, (Ohm/km) - outer core: 38,5
max. equal resistance at 20 °C (Ohm/km) - inner core: 18,5
max. attenuation at 20 °C (dB/100m) 1000 MHz: 19.3
max. attenuation at 20 °C (dB/100m) 100 MHz: 5.8
max. attenuation at 20 °C (dB/100m) 10 MHz: 2.2
max. attenuation at 20 °C (dB/100m) 2 000 MHz: 29.5
max. attenuation at 20 °C (dB/100m) 450 MHz: 12.5
max. attenuation at 20 °C (dB/100m) 650 MHz: 15.3
max. attenuation at 20 °C (dB/100m) 860 MHz: 18.5
min. bending radius single/multiple: 35/70 mm
min. reflection attenuation at 20 °C (dB) 10-300 MHz: 30
min. reflection attenuation at 20 °C (dB) 300-600 MHz: 25
min. reflection attenuation at 20 °C (dB) 600-900 MHz: 23
min. shielding attenuation (dB) 10 ~ 800 MHz: 75
Installation temperature: 5 °C to 60 °C
hazardous substances: none
UV resistant: no
PE = polyethylene dielectric: FPE
PES = film layer: no
number of shield wires: 128× 0.12 mm
number of shields: 2
Shielding coverage: >98%

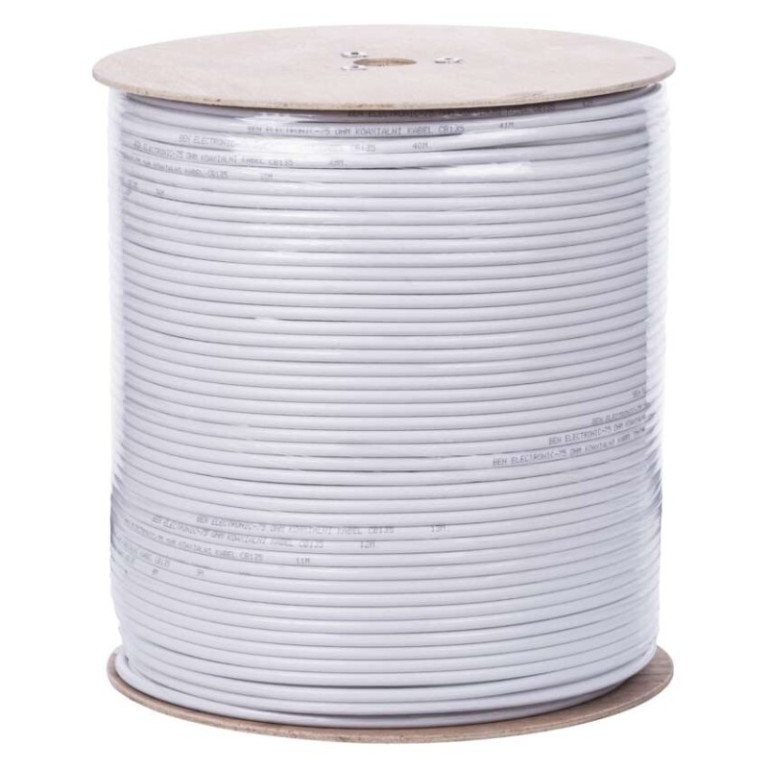

sales package: 500 m, wooden spool
cable sheath diameter: 6.8 mm
shielding diameter: 128× 0.12 mm²
Inner wire diameter: 1.1 mm
cross-section of power supply wires: not applicable
Storage temperature: -20 °C to 75 °C
I.foil shielding: 1× Al/PET
Shielding II. foil: none
reaction to fire class: eca
type of coaxial cable: CB21D
suitable for outdoor use: no
intended use: indoor wiring, interference resistant, CLASS A
Warranty period: 5 years
packing method - length: 500 m
packing method - metre marking: 1-500 m
packing method - coil type: wooden coil
