Coaxial cable CB500, 100m

Product description

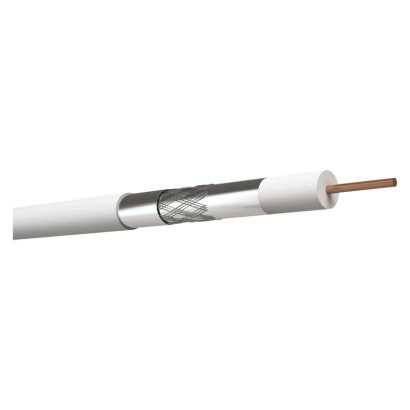

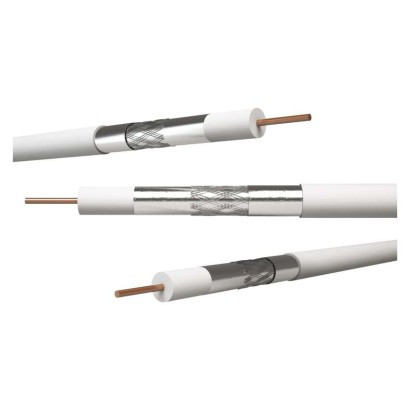

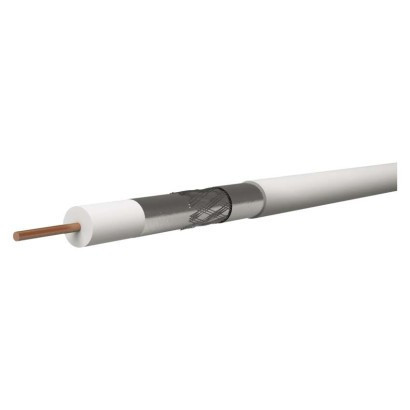

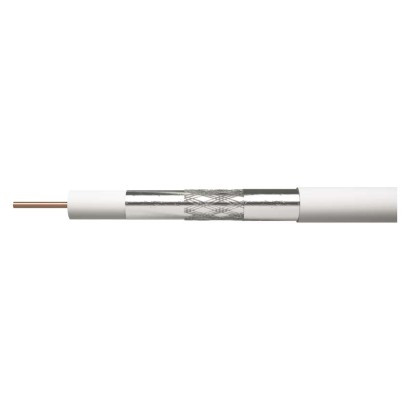

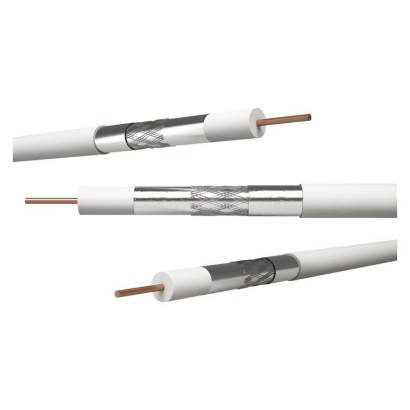

Coaxial cable of the highest quality with pure BC copper centre conductor and triple shielding of tinned CuSn copper, white colour. The cable is designed for all demanding cable TV transmission applications.The material used for the centre conductor and braid makes the cable extremely resistant to weather conditions, moisture and corrosion. Ideal cable for home and residential distribution.

• APE = air dielectric: no
• insulation colour of power supply conductors: not applicable
• cable sheath colour: white
• Shortening factor: 0.85
• dielectric type, diameter: FPE 3,2 mm
• recommended connector types - F crimp: *K7200
• recommended connector types - F screw connector: *K7321
• FPE = foam dielectric: yes
• weight (kg/km): 26.5
• impedance: 75 Ohm
• insulation of power supply conductors: not applicable
• insulation resistance between cores at 20 °C (MOhm/km): 1 000
• capacitance (pF/m): 53
• design of power supply wires: not applicable
• cable sheath material: PVC
• shielding material: tinned copper (CuSn)
• inner conductor material: copper (Cu)
• max. equal resistance at 20 °C, (Ohm/km) - outer core: 48,5
• max. equal resistance at 20 °C (Ohm/km) - inner core: 41,5
• max. attenuation at 20 °C (dB/100m) 1000 MHz: 29.1
• max. attenuation at 20 °C (dB/100m) 100 MHz: 10.5
• max. attenuation at 20 °C (dB/100m) 10 MHz: 4.5
• max. attenuation at 20 °C (dB/100m) 2 000 MHz: no
• max. attenuation at 20 °C (dB/100m) 450 MHz: 20.2
• max. attenuation at 20 °C (dB/100m) 650 MHz: 24.1
• max. attenuation at 20 °C (dB/100m) 860 MHz: 28
• min. bending radius single/multiple: 25/50 mm
• min. reflection attenuation at 20 °C (dB) 10-300 MHz: 25
• min. reflection attenuation at 20 °C (dB) 300-600 MHz: 20
• min. reflection attenuation at 20 °C (dB) 600-900 MHz: 18
• min. shielding attenuation (dB) 10 ~ 800 MHz: 75
• Installation temperature: 5 °C to 60 °C
• hazardous substances: none
• UV resistant: no
• PE = polyethylene dielectric: not applicable
• PES = film layer: no
• number of shield wires: 48×0.12 mm
• number of shields: 3
• Shielding coverage: 47%

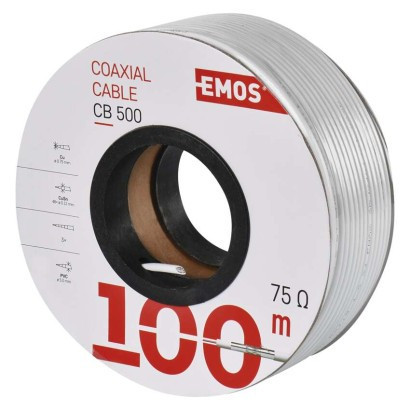

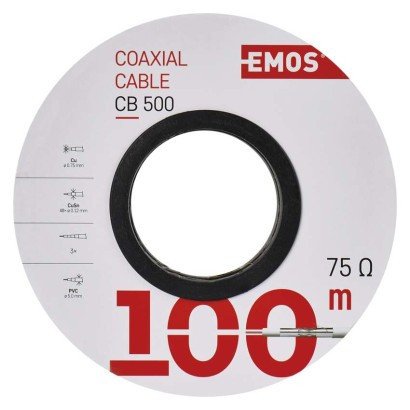

• sales package: 100 m, spool
• cable sheath diameter: 5 mm
• shielding diameter: 48 × 0.12 mm²
• Inner conductor diameter: 0.75 mm
• cross-section of power supply wires: not applicable
• Storage temperature: -20 °C to 75 °C
• I.foil shielding: 1× Al/PES
• Shielding II. foil: Al/PES
• reaction to fire class: eca
• type of coaxial cable: CB500
• suitable for outdoor use: no
• intended use: CATV distribution

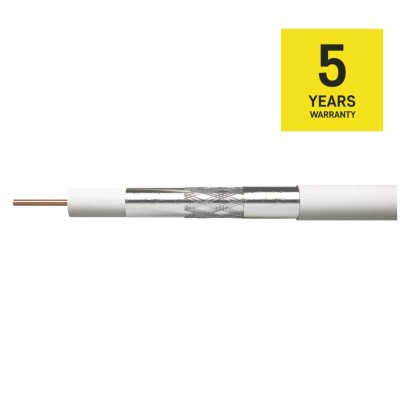

• Warranty period: 5 years
• packing method - length: 100 m
• packing method - metre marking: yes
• packing method - coil type: paper coil
