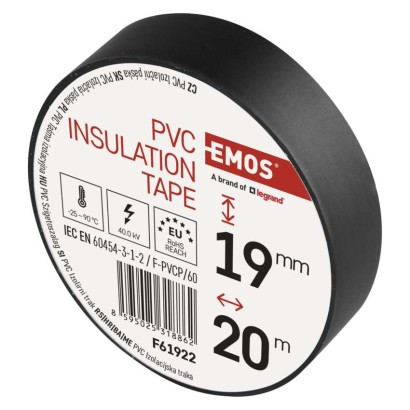

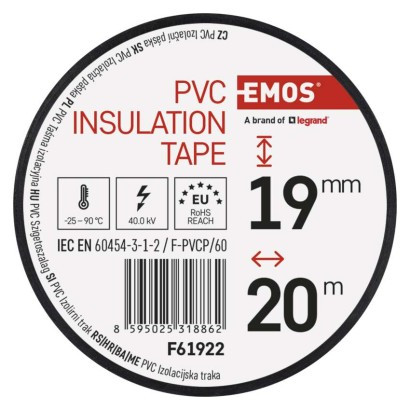

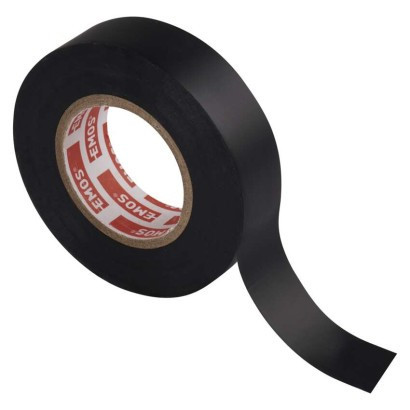

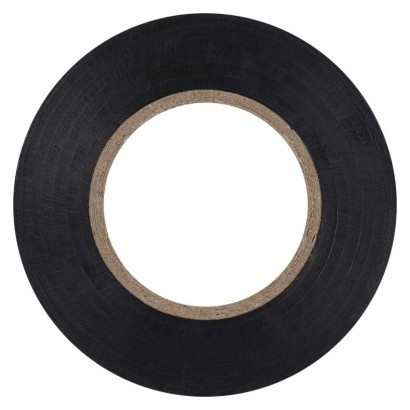

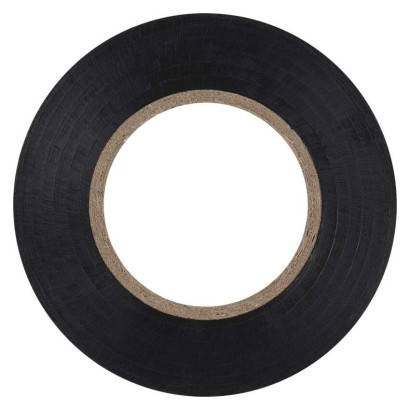

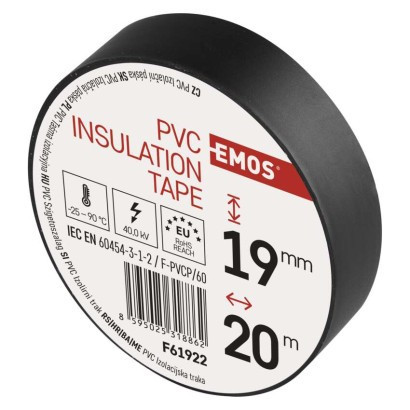

Insulating tape PVC 19mm / 20m black

Product description

Professional electrical insulating tape made of plasticized PVC for common use in LV distribution systems with a wide temperature range.

Product advantages

Insulating tape complies with the Directive 2011/65/EU of the European Parliament and of the Council on the restriction of the use of certain hazardous substances in electrical and electronic equipment (ROHS) and the Regulation (EC) No 1907/2006 of the European Parliament and of the Council on the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).IZOTAPE insulating tape can be used in production throughout the EU.

• colour: black
• length of winding: 20 m
• Recommended storage temperature: 10-45 °C
• electrical strength minimum: 40 kV/mm
• Electrical strength after moisture minimum: 35 kV/mm
• integrated textile net: no
• adhesive material: rubber
• UV resistant: yes
• Tensile strength: 150 N/10 mm
• print: without print

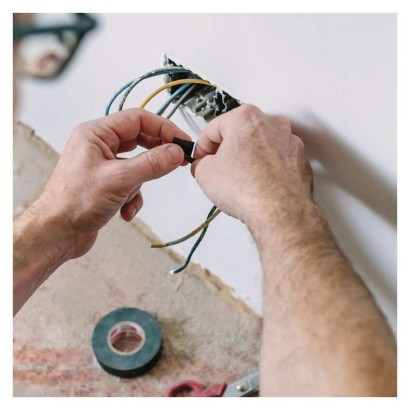

• intended use: cable insulation
• Adhesion to steel minimum: 1.8 N/10 mm
• adhesion to the substrate: 1.5 N/10 mm

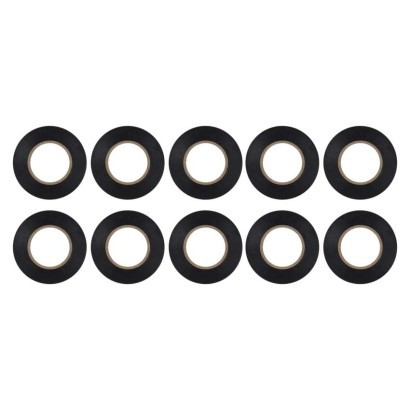

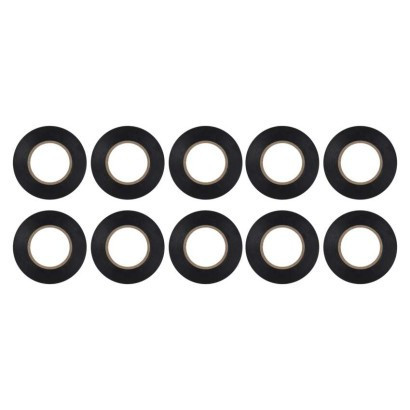

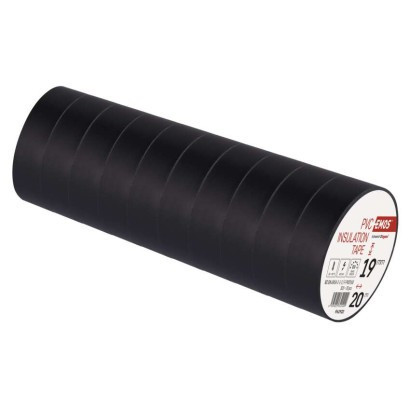

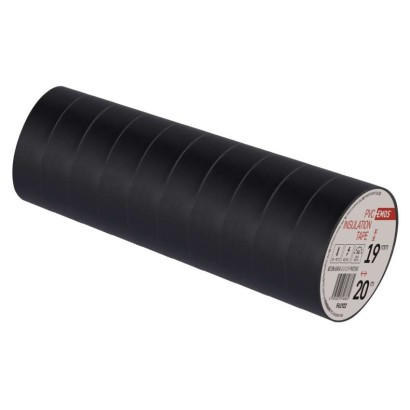

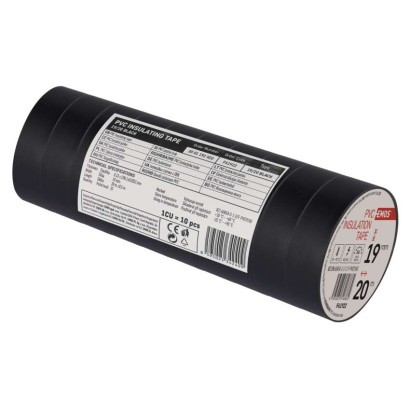

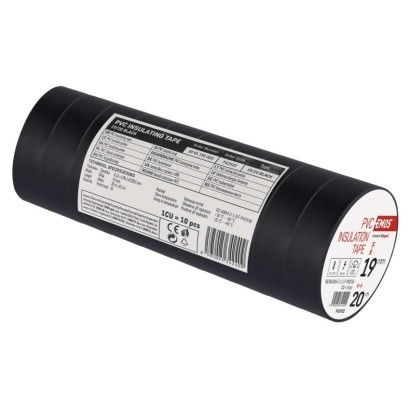

• sales packaging: 10 pcs, foil
• extension minimum: 125 %
• Size: 70 × 20 mm
• Operating temperature range: -25-90 °C
• self-extinguishing: no
• Tape width: 19 mm
• REACH compliant: yes
• ROHS compliant: yes
• Tape thickness: 0.13 mm
• type of tape: PVC
• watertight connection: yes

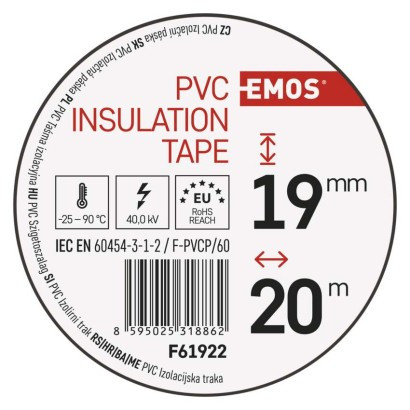

• complies with EN 60454-3-1-2/F-PVC/60
• creates a pressure-tight joint: no
• flame test: <1 sec
