Manual manual sump thermostat P5685

Product description

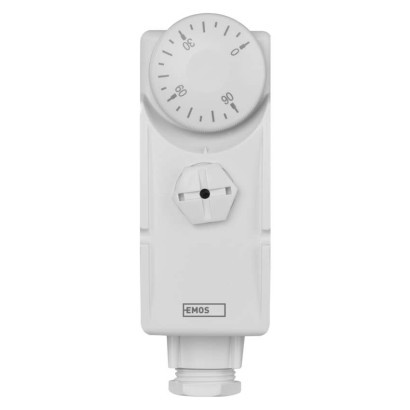

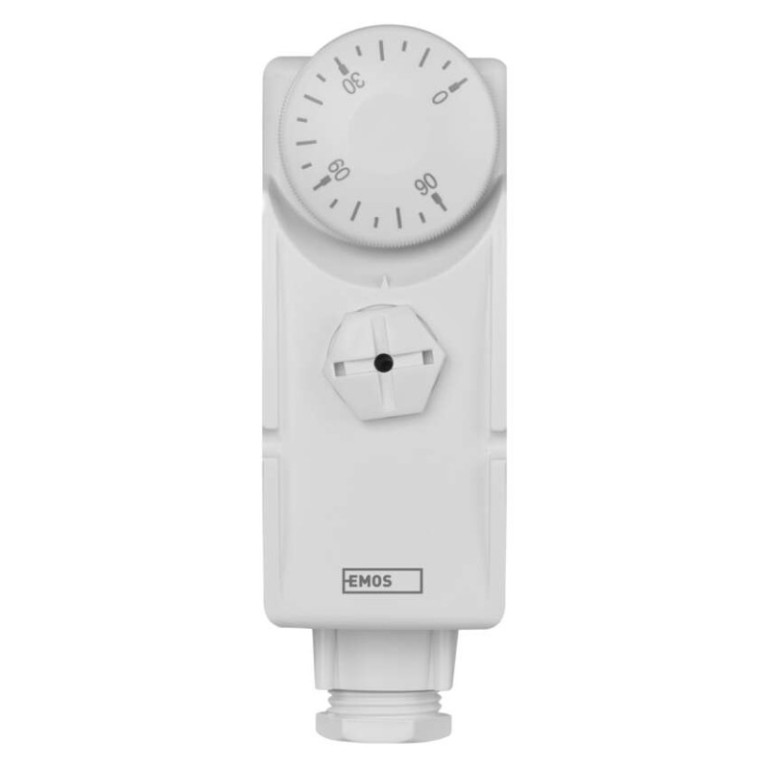

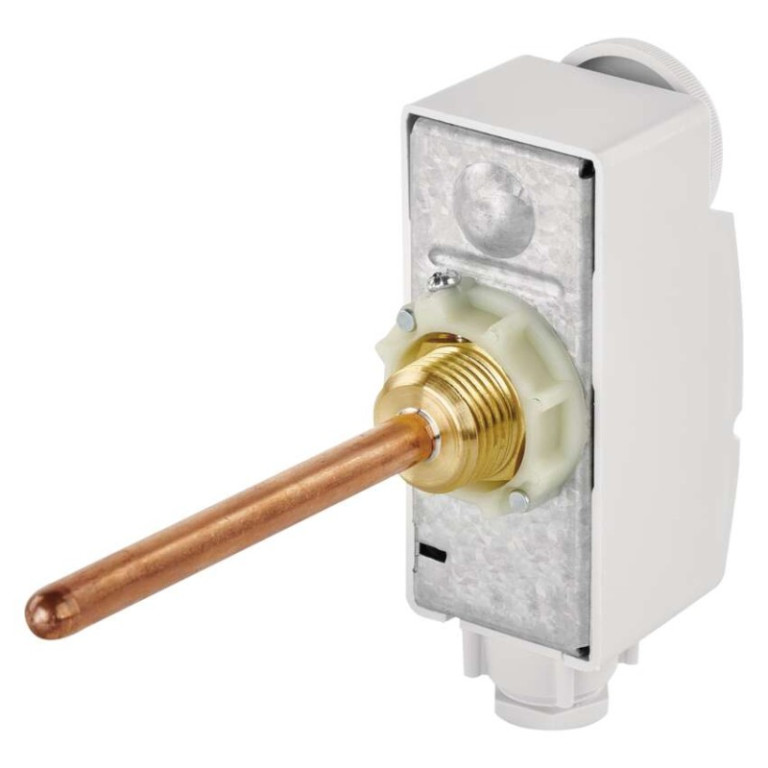

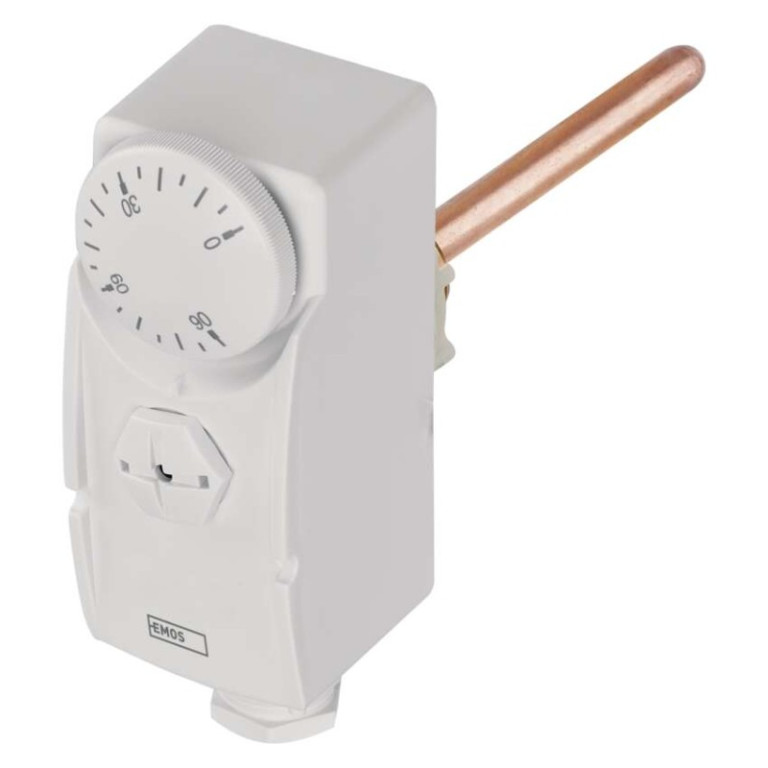

Sump mounted thermostat. The sump is equipped with an external thread.It senses the temperature of water in hot water tanks or heating systems. Allows temperature control, temperature limit monitoring and temperature drop function.

• colour: white
• Capillary sensor length: not specified
• range in free space: not specified
• type of control: heating and cooling system
• ON/OFF function: no
• holidays feature: no
• Set-back function: not applicable
• temperature calibration: no
• Temperature measurement: 0 °C to 90 °C
• possibility of interfacing with other detectors: not specified
• Power supply: 230 V, 400 V AC
• Gate power supply: not specified
• receiver power supply: not specified
• transmitter power supply: not specified
• Temperature setting: 0 °C to 90 °C, 5 °C resolution
• adjustable temperature variance: not applicable
• freeze protection: no
• number of programmes: not specified
• backlit display: not applicable
• working frequency: not specified
• sales packaging: 1 pcs, box
• Protocol.

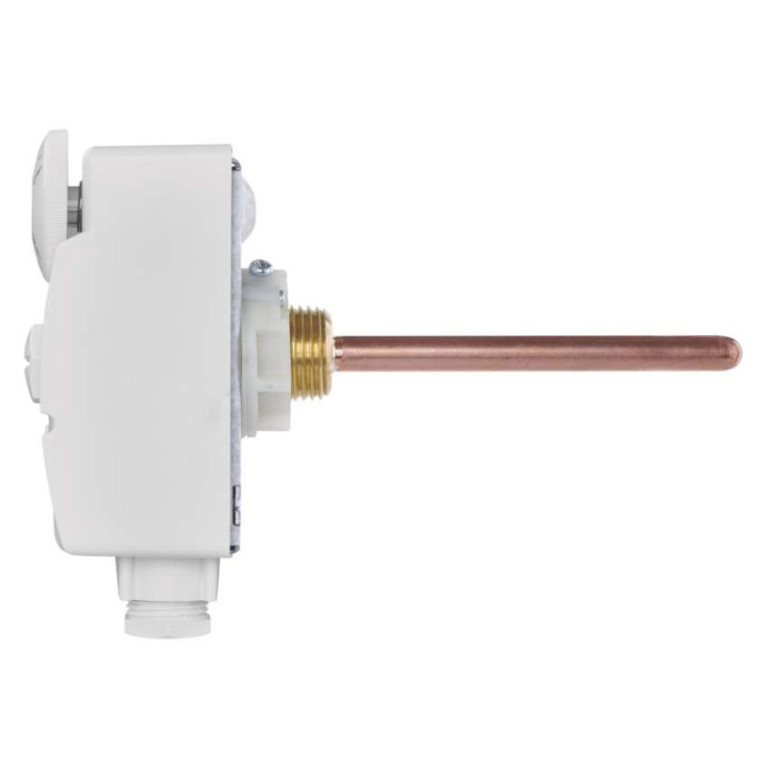

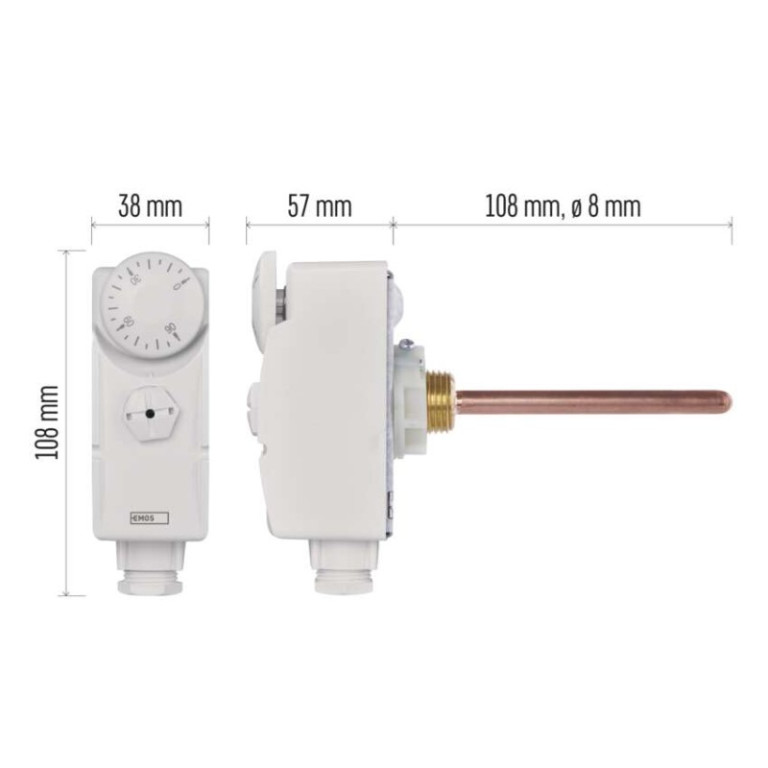

• Dimension: 57 × 38 × 108 mm, sump: 110 mm, Ø 8 mm, thread 1/2"
• Gate dimension: not specified
• receiver size: not specified
• transmitter size: not specified
• part of the package: not applicable
• switching load: 16 A resistive, 4 A inductive
• switching: 230 V AC, 50 Hz
• Type of temperature setting: not specified
• control type: manual thermostat
• thermostat type: wired thermostat
