Manual manual sump thermostat P5686

Product description

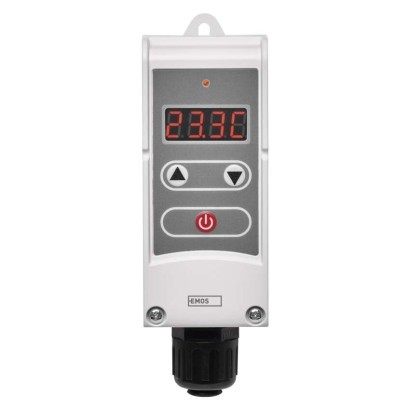

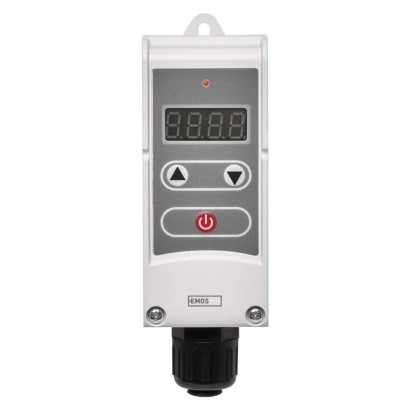

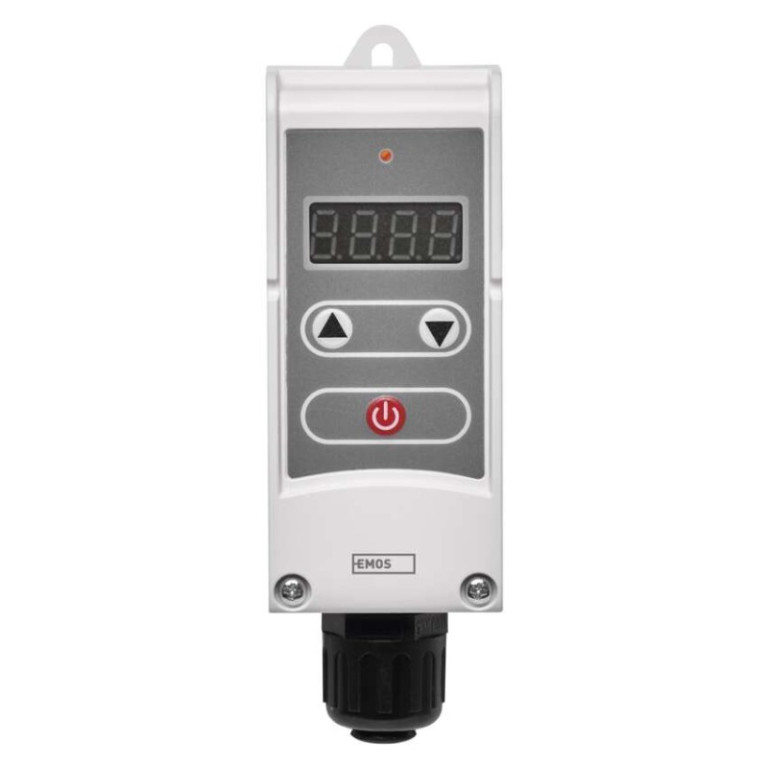

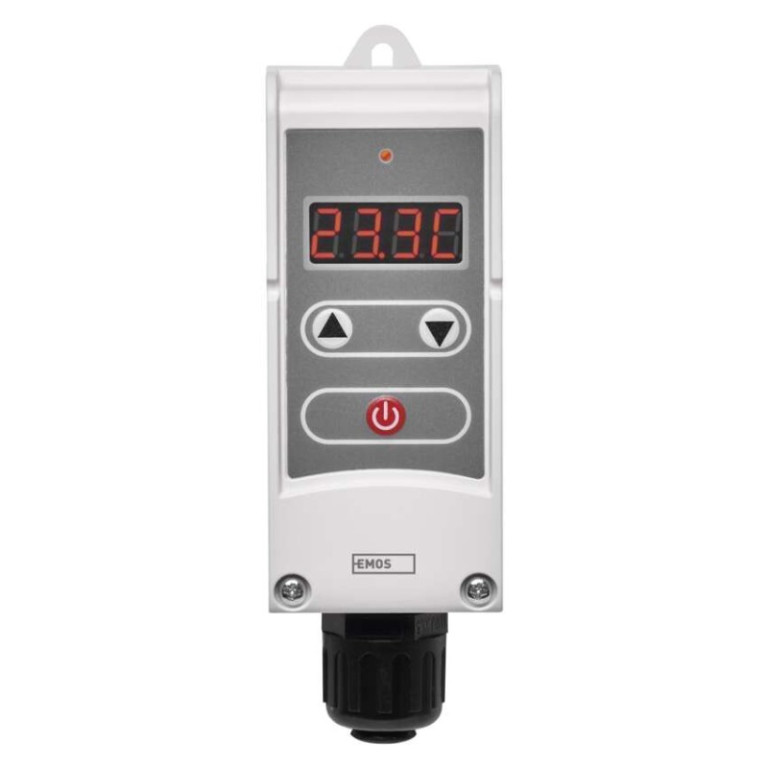

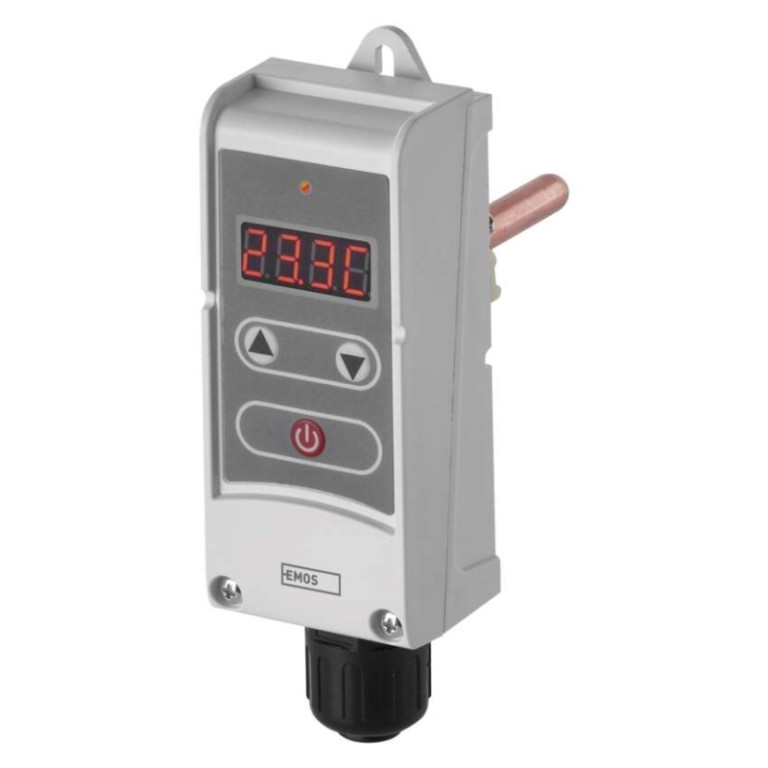

It is most often used in combination with a boiler or storage tank. The sensor is installed directly on the boiler including the thermostat body. It can be connected to a heating system and a cooling unit. Saves heating and cooling costs. Simple and user-friendly operation. Clear backlit display. Precise temperature setting thanks to display. Thermostat on indicator light (glows red when thermostat is on). Temperature setting from 5 °C up to 80 °. Mains power supply (230 V). Includes rubber grommet to protect the connected wires. Allows temperature control, temperature limit monitoring and temperature drop function.

Product advantages

Hysteresis adjustable.Digital backlit display.Screwless terminal.

• colour: white
• Capillary sensor length: not specified
• range in free space: not specified
• type of control: heating and cooling system
• ON/OFF function: yes
• holidays feature: no
• Set-back function: not applicable
• temperature calibration: no
• Temperature measurement: 5 °C to 80 °C, 0.1 °C resolution
• possibility of interfacing with other detectors: not specified
• Power supply: 230 V AC
• Gate power supply: not specified
• receiver power supply: not specified
• transmitter power supply: not specified
• Temperature setting: 5 °C to 80 °C, in 0.1 °C increments
• adjustable temperature range: 0.1 °C to 15 °C, in 0.1 °C increments
• freeze protection: no
• number of programmes: not specified
• backlit display: yes
• working frequency: not specified

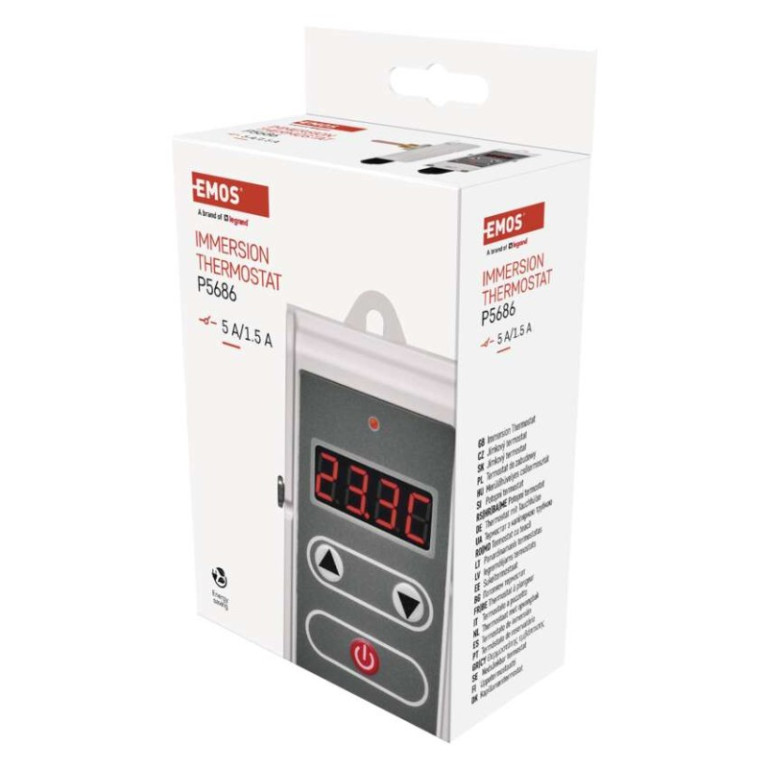

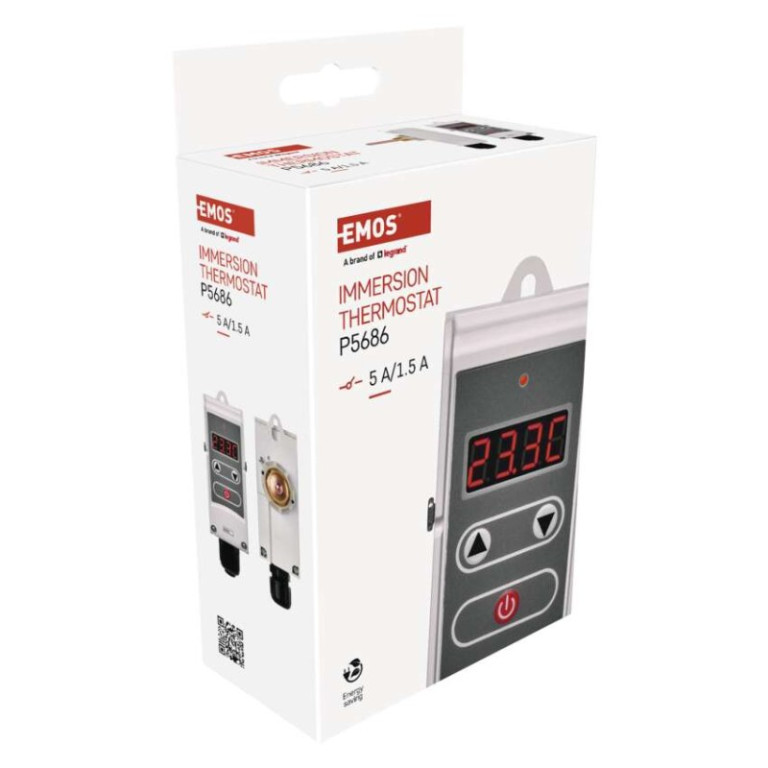

• sales packaging: 1 pcs, box
• Protocol.

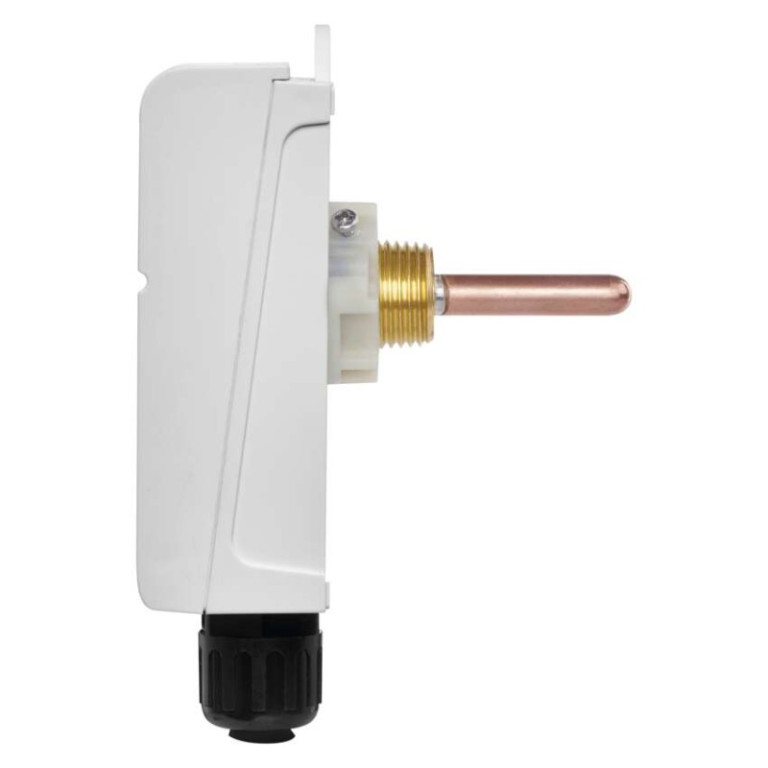

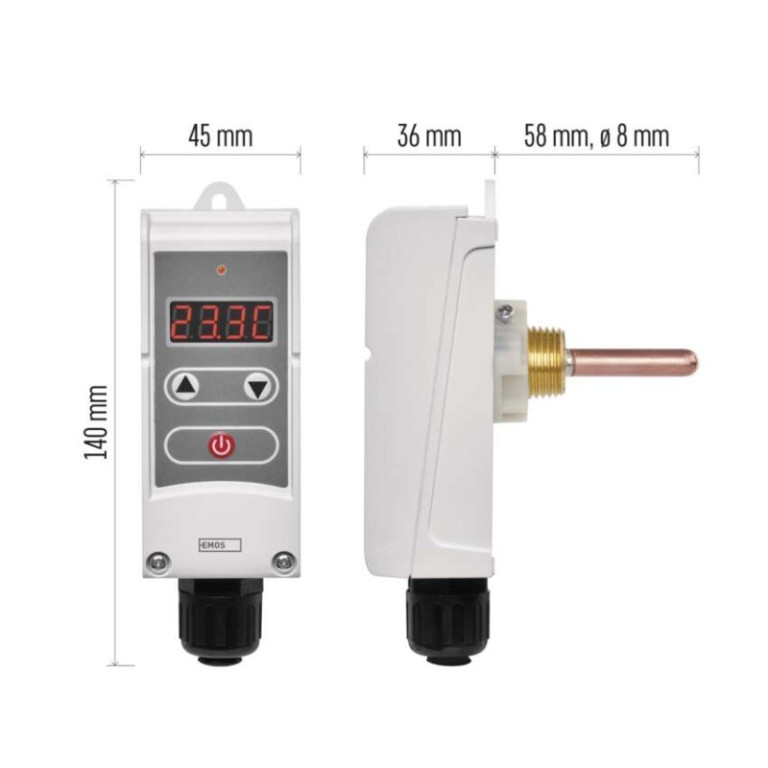

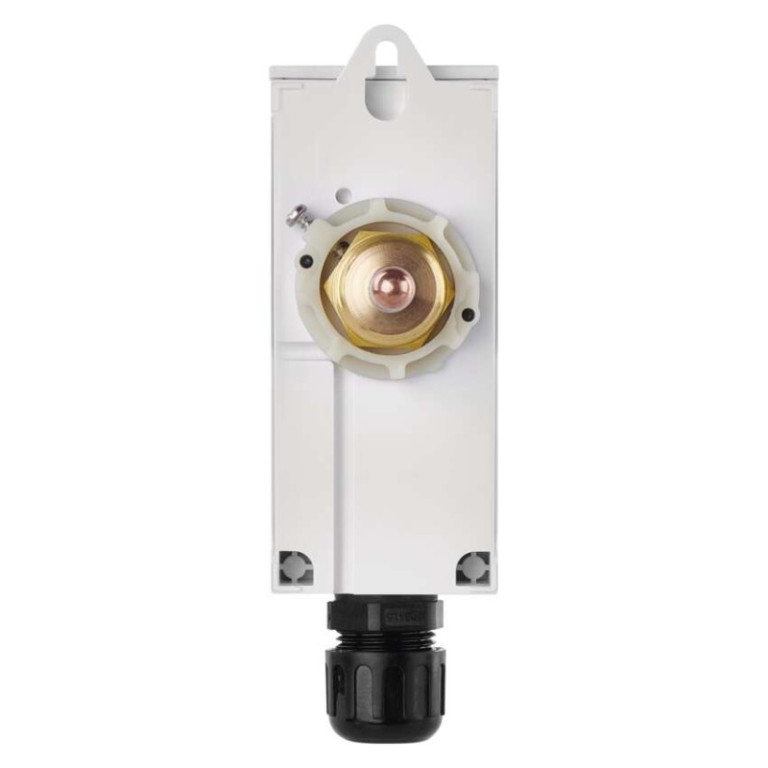

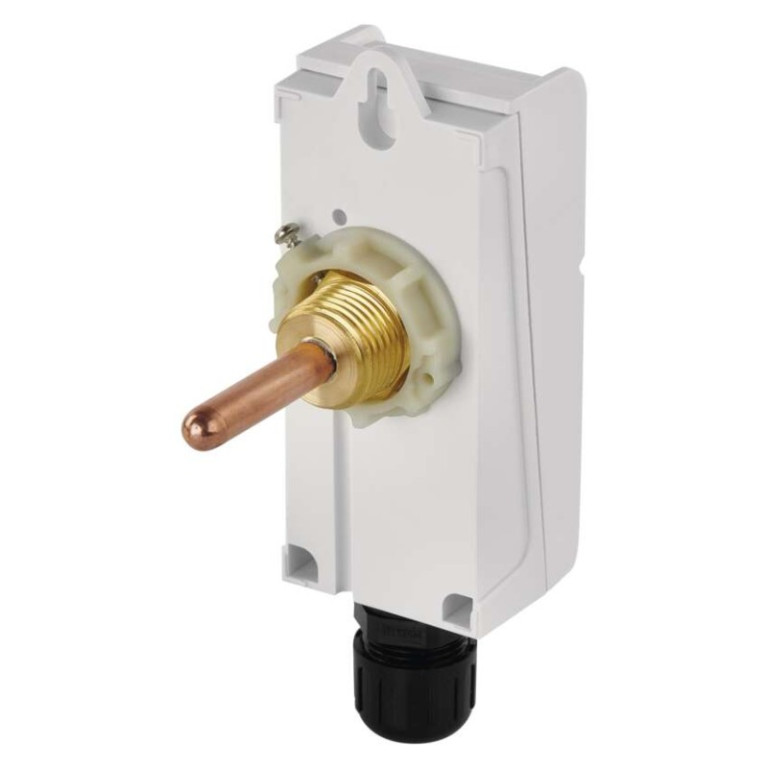

• Dimension: 45 × 36 × 140 mm, sump: 58 mm, Ø 8 mm, thread 1/2"
• Gate dimension: not specified
• receiver size: not specified
• transmitter size: not specified
• part of the package: not applicable
• switching load: 5 A resistive, 1.5 A inductive
• switching: 230 V AC, 50 Hz
• Type of temperature setting: manual
• control type: manual thermostat
• thermostat type: wired thermostat
